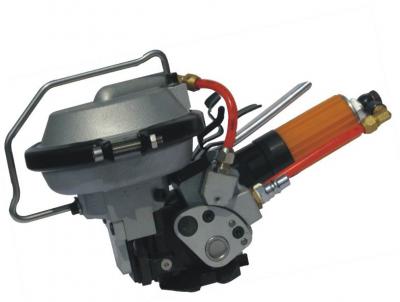

Mode:  KZ-19 Pneumatic Push Type combination steel strapping tool

This tool is specially designed for round and small items and is ideal in numerous industries where small, irregular shaped bundles need to be strapped. KZ-19 has an extremely small base plate which allows it to strap difficult packages at extreme angles.


Very suitable for strapping bars, bundles, pipes, coils and packages having a small surface.

It is used for stationary operation the tool may be suspended on a spring-loaded balancer using a suspension bracket.



      KZ-19 Pneumatic Strapping Tool                  Parts      Video

  • Steel strap: W13-19mm,T:0.38-0.8mm

  • Air pressure: 0.42-0.6Mpa

  • Tightening speed: 5.5m/minute

  • Tension:  ≥4.9KN/0.6Mpa

  • Joint tensile: ≥6.3KN

  • Net weight: 5kg
