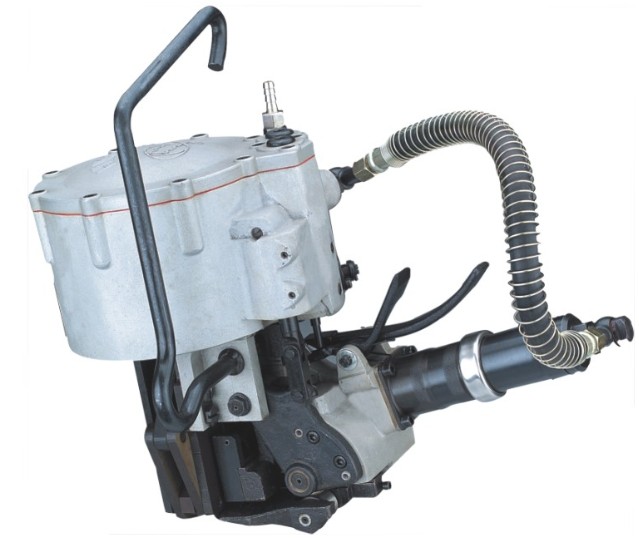

Mode:KZ-32/19 Push Type Pneumatic combination steel strapping tool

This proven tool has been designed for use in demanding and rough applications in the steel processing and non-ferrous industries. It provides high safety and is ideal for round, curved and irregularly shaped objects.

The most rugged pusher type strapping tool of its kind for continuous and shift operations demanding a high working reliability.

High performance machine with an outstanding record of performance in the steel and non-ferrous industries.

The perfect double notch upcut seal joint is accomplished in one operation.

Inserting of the strap into the tool is easy since the feed wheel is lifted pneumatically and no operator effort is required.

Suspension brackets are available allowing the tool to be mounted in any possible suspension position.


  • Steel strap: W 19/25/32mm,T:0.8-1.2mm

  • Air pressure: 0.35-0.6Mpa

  • Tightening speed: 5.3m/minute

  • Tension:  ≥9.8KN/0.6Mpa

  • Sealing method: steel seal, Double notch

  • Joint tensile stress: ≥18.4KN

  • Net weight: 14kg
