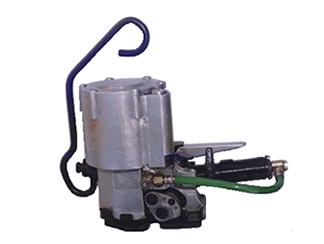

                           Model: KZM-32    Pneumatic Strapping Machine (Sealless)

Application:

KZM-32 is used mainly in the timber,construction material and metallury industry. The massively constructed tool is characterized by its reliability for shift work and continous operation under the most rigorous condition.

Advantage:

• Sealless joint reduces the overall strapping costs by approx. 10% through the elimination of the seals.

• Robust heavy duty strapping machine for flat package, the perfect tool for high tension applications, designed for demanding applications in a rough environment.

• Ruggedly designed high performance strapping tool meeting the requirements of the most demanding application.

• High reliability reduces down time; easy to maintenance

Main Specification:

• Air pressure: 0.55mpa-0.7mpa

• Steel strap quality: tensile strength ≥735mpa, forbid to use those ＜600mpa

• Steel strap width: 32mm, strap thickness 0.8-1mm

• Sealing method: Sealless

• Joint tensile strength: approx. 80%

• Max tension: ≥8000N

• Net weight:24.1Kg ± 0.15Kg

Main Specification:

• Air pressure: 0.55mpa-0.7mpa

• Steel strap quality: tensile strength ≥600mpa, forbid to use those ＜500mpa

• Steel strap width: 19mm or 16mm, strap thickness 0.5-0.7mm

• Sealing method: Sealless

• Joint tensile strength: approx. 80%

• Max tension: ≥6000N

• Net weight: 11kg
